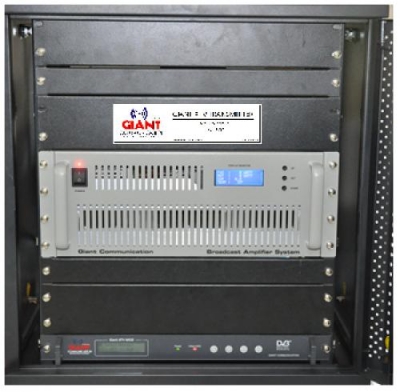

TV UHF 200W - Sertifikasi Postel

TV UHF 200W - Sertifikasi Postel
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli TV UHF 200W - Sertifikasi Postel

Lebih Lengkap Mengenai TV UHF 200W - Sertifikasi Postel

Brand New
Pemancar TV 200 Watt, Sertifikasi Dirjen Postel Indonesia

Manufactured by PT. Giant Communication
Standard International
ISO-9001/2008 Certified
http://www.qscert.com/pt.-giant-communication..html?page_id=6900


Key Features
• Frequency Working : 470-860 MHz ( Specified to band Pass Filter )
• Power out : 200 W PEP Analog Modulation
• Gain : 55db
• Fully digital front panel controls
• Easy operation with auto gain control
• Force AIR cooling
• Temperature compensated BIAS
• Lightweight / compact size


Specification

MODULATOR RF
Frequency range : 470 - 870MHz Any channel
TV system : PAL D/K
Output Return loss : ≥15dB(VHF) ≥12Db(UHF)
Output level : ≥120dBuV(typical)
Output level adjustable range : 0~16dB(0.5dB step )
Audio carrier power to video
carrier power ratio : -8~-22dB(0.5dB step )
Total Frequency deviation : ≤5KHz
Error of video/audio carrier
interval : ≤}0.5KHz
Carrier to noise ratio (C/N) : ≥62dB
Output suppression : ≥60dB
Interface : FL10

MODULATOR VIDEO
Video Degree of modulation signal : ≥87.5%
Flatness is operating band : ≤}0.75dB
Gain of differential coefficient : ≤2%
Phase of differential coefficient : ≤2°
K-2T Factor : ≤3%
Delay difference of color or
light : ≤30ns
Signal to noise ratio : ≥56dB(unweighted)
: ≥62dB(weighted)


MODULATOR AUDIO
Pre-emphasis of audio : 50us
Maximum partial frequency of
audio : 50KHz
Audio flatness : ≤0.5dB(40Hz~15KHz)
Distortion degree of audio : ≤1%
Signal to noise ratio : ≥6dB

MODULATOR INTERFACE
Interface : RJ45
Communication format : RS485
Date rate : 9600bits/s
Miscellaneous Dimension : 44mm×482mm×360m
Power : AC220V 10PHz20VA
